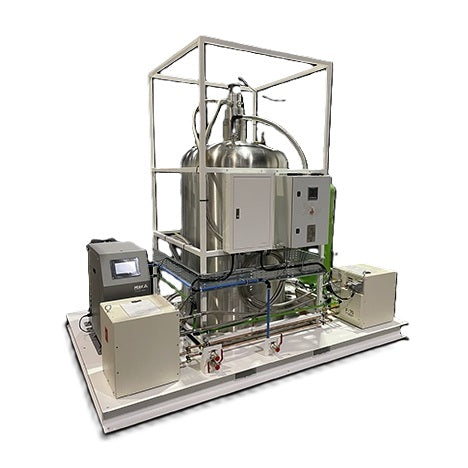

Titan LN120

The Titan LN120 produces 120L/day of liquid nitrogen with 300L storage. Skid-mounted, adaptable, and designed for efficient large-scale on-site LN2 supply.

The Titan series is a range of reliable, highly adaptable, skid configured, on-site liquid nitrogen generators. The open skid design allows for larger production and storage of LN2. Titan generators support numerous applications in laboratories, research institutes, universities, hospitals, dermatology clinics and more.

The Titan LN120 has an internal storage volume of 300 litres allowing for quick and efficient large-scale dispensing, or direct transmission to the application without having to transfer from bulk.

Specifications:
•Liquid nitrogen production (l/day @ 2 Bar): 96 @ 50 Hz / 121 @ 60Hz
•Liquid nitrogen purity: >99% (<1.0% O2)
•Liquid Nitrogen tank volume (litres): 300
•Compressed air quality: ISO 8573-1 Class 2.4.1
•Compressed air requirement (Nm3/hr) @7 bar g min: 14.1 (8.7 CFM)
