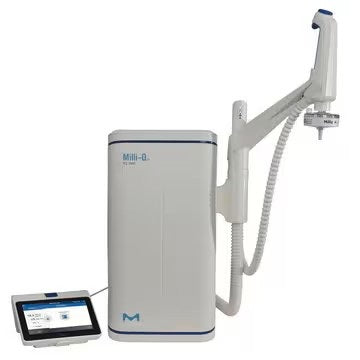

Milli-Q® EQ 7000 Ultrapure Water Purification System

Product Description:

Produces ultrapure (Type 1) water from pure water with a distribution flow rate up to 2 L/min., with wall-mounted dispenserMilli-Q EQ 7000 ultrapure water purification system with remote Q-POD dispenser and HMI touchscreen installation delivers up to 300 L per day of ultrapure water from purified water, such as from a Milli-Q IX pure water system or delivered by a pressurized loop fed by a centralized pure water system such as a Milli-Q HX system .

A range of intelligent design features and technological innovations make the system easy to use and reduce its environmental footprint compared to the previous generation Milli-Q Reference system.
The system features two distinct components that can be remotely installed up to 3 m from the purification unit:

• A large, 7-inch (~18 cm) touchscreen interface that allows intuitive system control, rapid data access, and at-a-glance quality monitoring.
• The ergonomic Q-POD dispenser provides 3 flow rates, ‘Check & Dispense’ lights, and final polishing adapted to application needs.

Features and Benefits:

• IPAK Meta® and IPAK Quanta® polishing cartridges remove ions from pure water down to trace level.
• The Q-POD® dispenser offers agile delivery of water at 3 manually adjustable flow rates (up to 2 L/min).
• ‘Check & Dispense’ lights on the Q-POD® arm ensure system readiness and an optimal dispense.
• One-touch volumetric dispensing, from 100 mL to 25 L, in 100 mL increments.
• The dispenser and HMI touchscreen can be installed up to 3 m distance from the system.
• Delivers consistent low total organic carbon (TOC = 5 ppb) ultrapure water.
• A user-friendly, intuitive HMI touchscreen simplifies system use and data access.
• At-a-glance quality monitoring gives essential water quality information (resistivity, temperature, TOC indication, and water circulation status) on the touchscreen interface.
• Inline proprietary TOC indicator measures at the point of use. The measure appears on the display 90 seconds after each dispense.
• e-Sure tags present on all Application POD-Paks give full data traceability.
• Flexible, space-saving installation options: on or under the bench, or wall mount.
• A convenient hands-free dispensing foot pedal option reduces the risk of contamination.
• Lab Close mode minimizes water and energy consumption when the system is not used for extended periods.
• Easy and carefree maintenance: Automatic alerts notify the need for cartridge replacement.
• Select from a full range of services, including time-saving MyMilli-Q digital services.
• Manufactured in an ISO 9001 and ISO 14001 certified production site.

Application:

This high-quality Milli-Q® ultrapure water system is flexible, intuitive, and green. Ultrapure water produced by this system is used for sensitive analytical techniques including HPLC, UHPLC, IC, and other types of chromatography, as well as for elemental analysis techniques such as AAS and ICP-MS. It is also recommended for use in life science areas such as cell biology, molecular biology, biochemistry and innovative detection methods.
