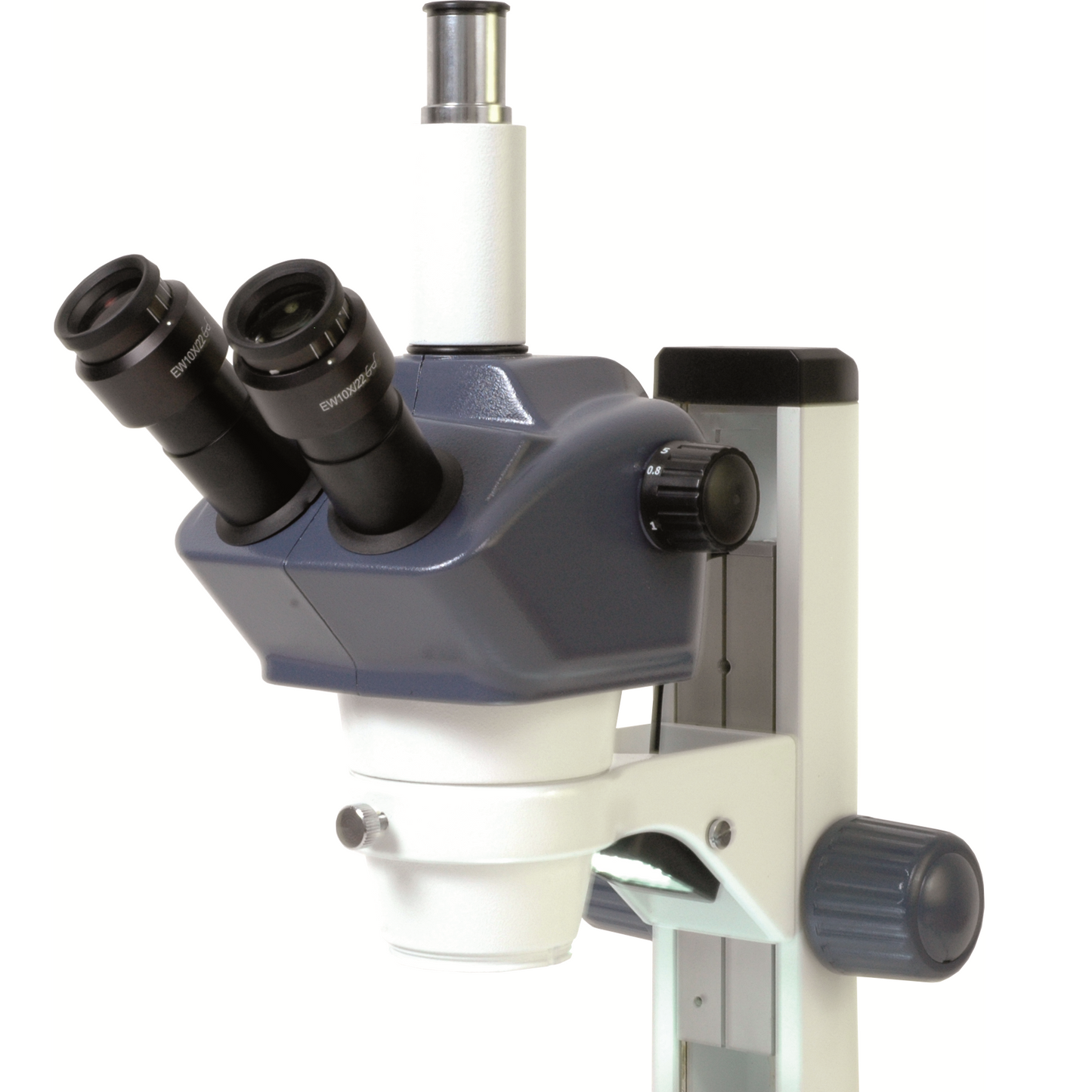

Microscope Stereo Zoom Trinocular BST-606

Specification Model BST-606

• Optical head: Binocular head inclined at 45° Interpupillary Distance 55 - 75 mm Eyepiece dioptric adjustment range ± 5D

• Working distance: 115 mm

• Field of View: 28,0 to 4.5 mm diam.

• Eyepiece: EWF 10X/22 eyepieces with eyeshadow

• Zoom Optics: 0,8X to 5X , Zoom ratio 1:6,3

• Illumination: 2-way illumination switch allows upper and lower illumination
Transmitted (lower) LED light source
Incident (upper) LED light source

• Stage Plate: 100 mm ø frosted glass stage plate and black/white reversible stage plate

• Base: Stable 300 x 225 mm base, fitted with anti-skid rubber feet Main Body 360° rotatable

• Power: 100-240V, 50-60Hz

• Dimensions: 400 x 340 x 670 cm, Grossweight 10,1 kg
