Pall

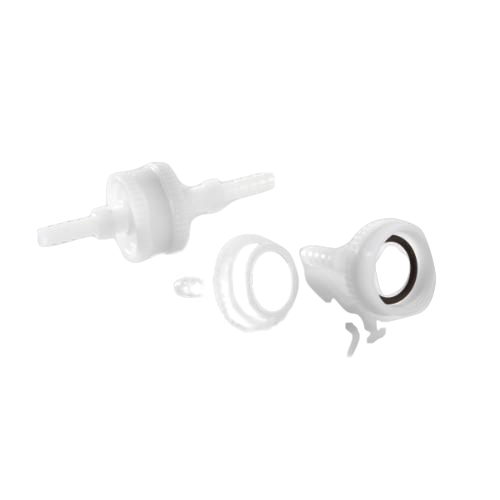

Filter Holder Inline 25mm Delrin
Pack of 6
- Product overview
Overview
25 mm in-line filter holder, a Pall Life Sciences product, is a lightweight filter holder for particulate sampling, venting and air monitoring applications
Domed inlet provides uniform sample distribution on the filter.
Delrin plastic offers broad chemical compatibility and material strength.
Accepts 25 mm filter discs.
Lightweight for venting and air monitoring applications.
Specifications
Materials of Construction
Body: Delrin (acetal resin)
Hose Barb Adapters: Nylon
O-Ring: Viton
Support Screen: Type 316 stainless steel
Effective Filtration Area
3.7 cm2
Dimensions
Overall Length: 2 cm (0.8 in.)
Diameter: 3.5 cm (1.4 in.)
Inlet/Outlet Connections
1/8 in. FNPT; hose barb adapter accepts 6.4 mm (1/4 in.) ID tubing
Maximum Operating Temperature
In Water: 66°C (151°F)
In Air: 85°C (185°F); will perform effectively with intermittent use up to 121°C (250°F)
Maximum Operating Pressure
2.8 bar (280 kPa, 40 psi)
Domed inlet provides uniform sample distribution on the filter.
Delrin plastic offers broad chemical compatibility and material strength.
Accepts 25 mm filter discs.
Lightweight for venting and air monitoring applications.
Specifications
Materials of Construction
Body: Delrin (acetal resin)
Hose Barb Adapters: Nylon
O-Ring: Viton
Support Screen: Type 316 stainless steel
Effective Filtration Area
3.7 cm2
Dimensions
Overall Length: 2 cm (0.8 in.)
Diameter: 3.5 cm (1.4 in.)
Inlet/Outlet Connections
1/8 in. FNPT; hose barb adapter accepts 6.4 mm (1/4 in.) ID tubing
Maximum Operating Temperature
In Water: 66°C (151°F)
In Air: 85°C (185°F); will perform effectively with intermittent use up to 121°C (250°F)
Maximum Operating Pressure
2.8 bar (280 kPa, 40 psi)
Sterilization
Provided non-sterile. Autoclavable if desired at 121 - 123°C (250 - 253°F) at 1.0 bar (100 kPa, 15 psi) for 15 - 20 min.
Do not autoclave with aluminum foil; use autoclave paper or other permeable wrap such as Tyvek.
Applications
Useful for low pressure, in-line air cleaning, liquid filtering, or sampling applications.
Can be easily incorporated into liquid- or gas-carrying tubing systems at the point of use.
